APSX®-FD Fire Rated Air Pressure Stabiliser
-
- ISO 9001
- Approved & certified product
- Large Stocks Held
- Serial number traceability
- Antimicrobial protection
Get a quoteThe APSX Air Pressure Stabiliser has been purpose-designed for the application of differential air pressure, such as Operating Theatres, Isolation Rooms and Pharmaceutical Clean rooms to control airborne contamination.
The VARI-centric® balancing system accurately controls the differential air pressure between adjacent rooms, and the blades close fully as soon as the pressure differential drops below the required level. This diverts the airflow to pass through an open door forcing back airborne contamination without the need to alter the air extract supply.
Positive pressure of the Operating Theatres to protect them from the ingress of infectious agents passing through the open doors, by providing high air volume rates, is a well-established principle of hygiene and infection control, forming the fundamental principles on which Health Technical Memoranda HTM 03-01 is based.
Following the philosophy of HBN 4-01 Supplement 1: Special ventilation isolation facilities for patients in acute settings, Air Pressure Stabilisers are utilised to control the pressure differential between the Lobby and Isolation room.
Within Cleanrooms, pressure stabilisers are used to facilitate the cascade of air pressures to maintain a sterile environment where facilities are conforming to ISO 14644-1.
Apreco VARI-centric® Pressure Stabilisers and associated products are supplied as standard with Biomaster paint finish, utilising silver technology – which is already used extensively within the healthcare sector as an excellent anti-microbial protection in conjunction with good hygiene practices.
-
-
Operating Theatres
The APSX®-FD Fire Rated Air Pressure Stabiliser is utilised to maintain the positive pressurisation of operating theatres and isolation rooms, to protect them from the ingress of infectious agents passing through open doors by providing high air volume flow rates is a well-established principle of hygiene and infection control.
Apreco has been acknowledged for their assistance in contributing to Health Technical Memorandum (HTM 03-01) which supersedes HTM 2025. They have also assisted with the validation of Isolation Room design following Health Building Notes (HBN 4: Supplement 1).

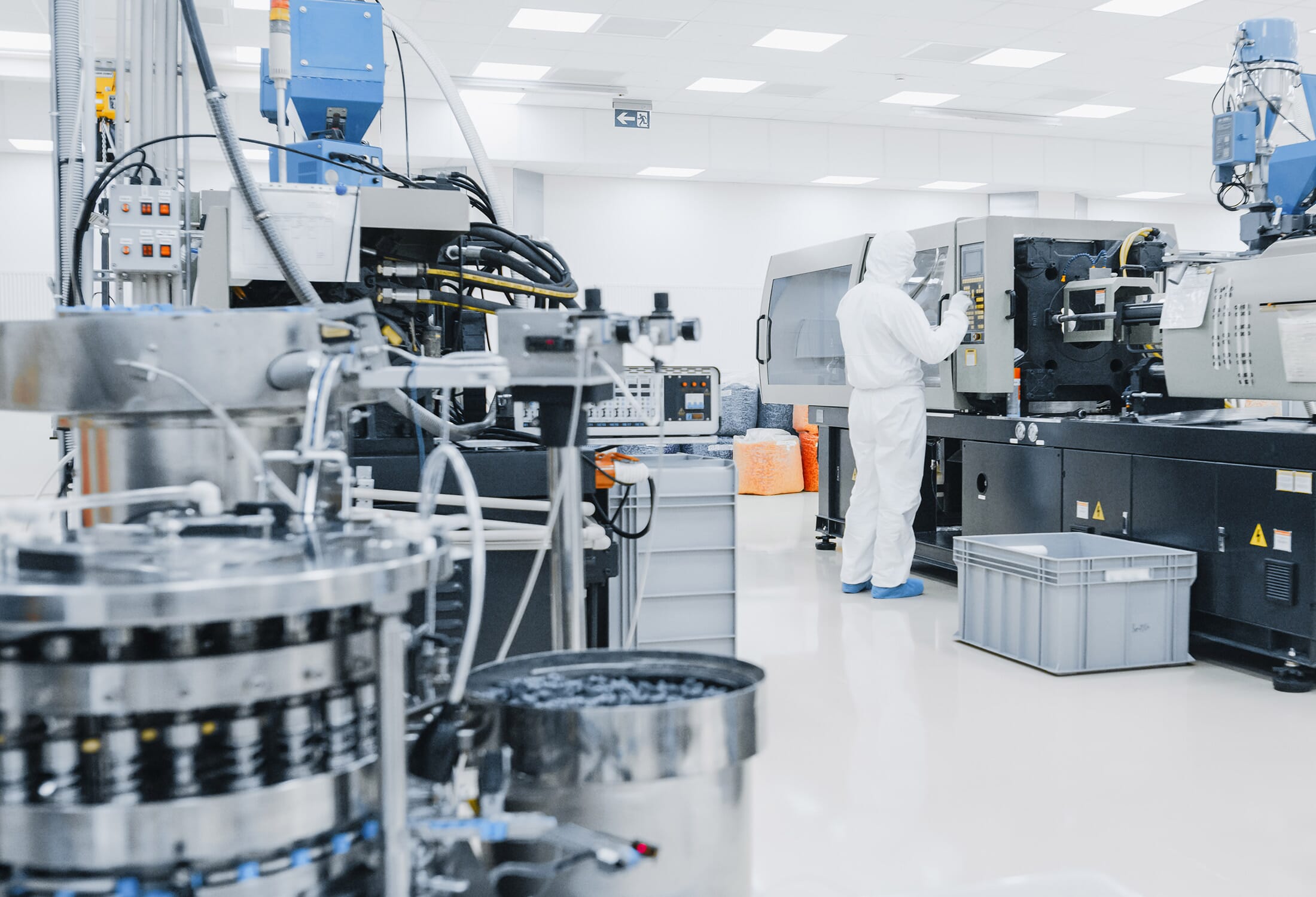

Clean Rooms
Apreco’s APSX®-FD Fire Rated Air Pressure Stabiliser has been designed to maintain a sterile environment. Our unit is utilised within the pharmaceutical clean rooms, Research Laboratories and Electronics Production Facilities for effective room differential pressure control.
All cleanroom areas should be either classified or non-classified. All classified areas should conform to an applicable standard. This standard is dependant upon geographic location and usage.
Isolation Rooms
When following the guidelines of HBN4 Supplement 1: Isolation facilites in acute settings the APSX®-FD Fire Rated Air Pressure Stabiliser is utilised to maintain the positive pressurisation lobby ensuring that air from the corridor does not enter the isolation room, and that air from the room does not escape into the corridor. This basic but effective design enables the suite to be used for both source and protective isolation without the need for switchable ventilation or special training for staff. Importantly it also provides safe isolation for those patients whose exact condition is unknown.
-
Metric Selection
The method below will give you an indication of the size of unit required for a given volume flow-rate at a given pressure.
Use Table A to calculate the total length of blade required, and then divide it into sections of equal length using values from Table B.
Example:
Selecting a Pressure Stabiliser capable of transferring 310 l/s (0.31 m3/s) @ 5 Pa.Stage 1:
310 x 7.35 = 2278.5 mm of total blade length.Where: 310 = Volume in l/s and 7.35 = Factor from Table A relating to 5 Pa.Stage 2:
Divide the calculated total blade length into equal lengths using one of the standard blade lengths from Table B.Consideration should be made regarding any physical restrictions that the building may impose before selecting the blade length for the unit.
Total calculated blade length of 2278.5 divided by 4 blades = 569.63 mm.
Rounded up to the nearest standard blade increment from Table B gives you 4 x 575 blades.
Table A (Factors)
Pa Factor Pa Factor 5 7.35 17 3.98 10 5.20 20 3.68 15 4.25 25 3.29 Table B (Blade Lengths in mm)
200 450 675 250 500 750 300 550 350 575 400 625 -
X-Ray Protection Baffle Screen
Apreco provide purpose designed lead-lined screens mounted in front of the stabiliser to protect personnel from harmful X-rays.
Laser Protection Screen
Apreco provide purpose designed screens mounted in front of the stabiliser to protect personnel from harmful laser-rays.
Fumigation Sealing Plate
Designed to seal against one client nominated side of a Bespoke Air Pressure Stabiliser, these plates are typically required when a facility requires one or more of its rooms/areas to undergo a fumigation process, to protect adjacent rooms/areas from the ingress of fumigant.
Baffle Screen
The Baffle Screen has been designed to divert the air from the Bespoke Air Pressure Stabilisers reducing jetting whilst allowing the Bespoke Air Pressure Stabilisers to function correctly.
-
